Tips for adjusting Lyra's automated conduit and conductor sizing
After we've added the Electrical BOS components to our project, we can Review Circuits.

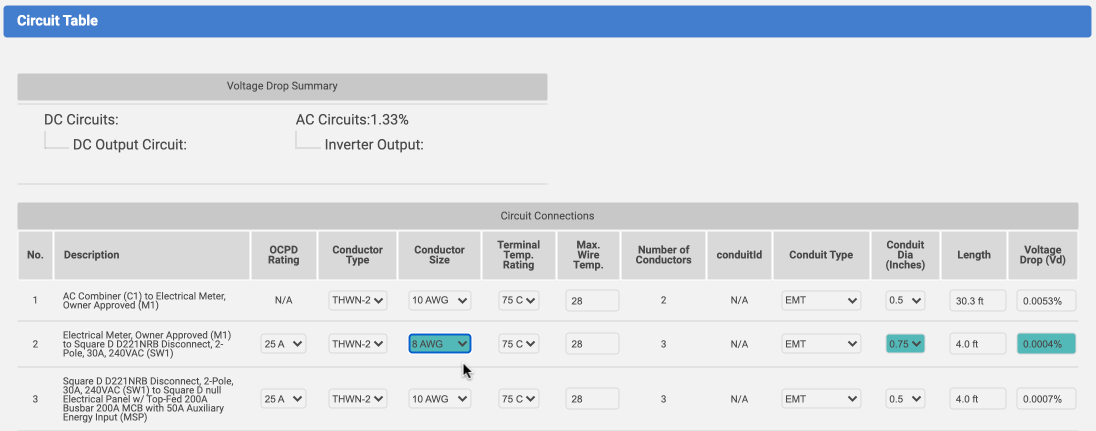

One of Lyra's great features is that it automatically sizes conduits and conductors after we add the Electrical BOS. Sometimes, however, we may want to use different values than what Lyra suggests, or adjust a value once we have more relevant information. In such cases, we can edit using the dropdown menus and editable fields on the Review Circuits page. From this menu we can make adjustments to the OCPD rating, conductor type & sizes, conduit diameter, length values and more.
Depending on our adjustments, we can even see Lyra take these new calculations into consideration in real time (indicated by the teal flashing). To save changes and continue, hit the Proceed To Racking button.
