      Adding Additional Inverters to a Design

      o



      Step 1: Verify you're in the System Design area.



      Step 2: Navigate to the Electrical Design step .


      ​Optional Step 3: If a single inverter was previously specified, the above menu can be reopened by clicking on the edit widget in the Inverter area of the Properties Panel.

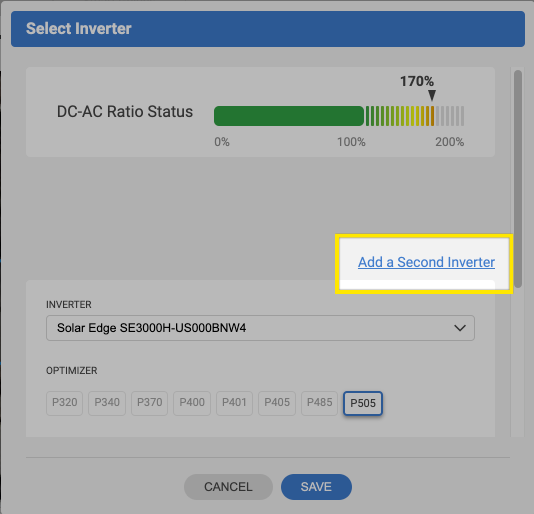

      Step 3: Use the Add A Second Inverter widget

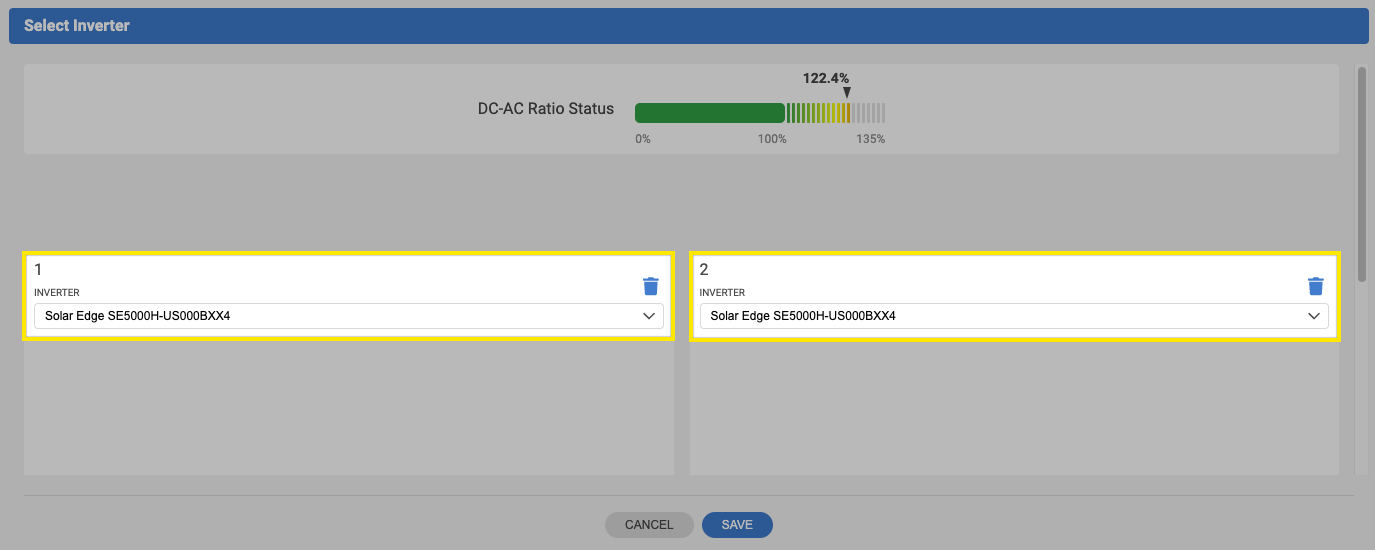

      Step 5: Specify inverters with the fillable fields and save.
